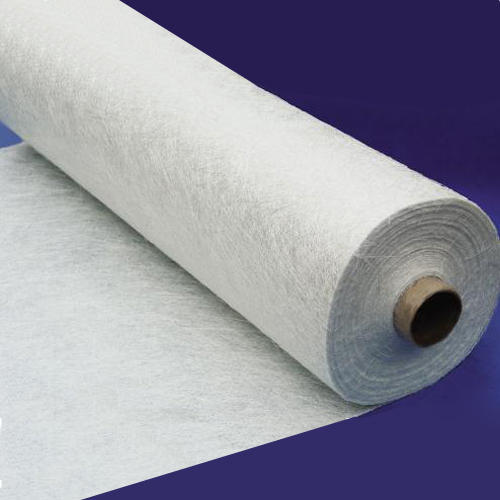

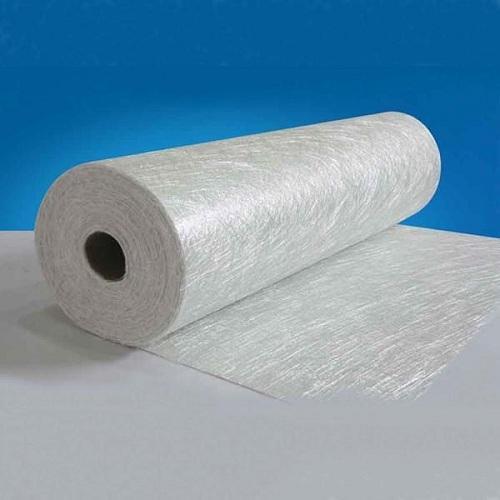

Chopped Strand Mat is a non - woven reinforced materials , it is made throught cutting the continuous Roving .
The end product are Boats , Laminates , Bathing equipments, Coolling Tower, etc.
Area weight ranging from 100g / m2 to 900g / m2. Width can be from 20cm to 320cm. Binder is in the form of Powder or Emulsion .
| Types of Glass | E-Glass or C-Glass |
| Length of Starnd | 50mm |
| Strand Sizing | Silane |
| Binder | Powder or Emulsion |
| Compatibality Resin | Polyester / Epoxy |
| Product Code | Area Weight | Moisture Content (%) | Lignition Loss (%) | Breaking Strength |
|---|---|---|---|---|
| CSM 200 | 200G / M2 | <0.15 | 2-10 | ≥60 |
| CSM 225 | 225G / M2 | <0.15 | 2-10 | ≥60 |
| CSM 300 | 300G / M2 | <0.15 | 2-6 | ≥90 |
| CSM 380 | 380G / M2 | <0.15 | 2-5 | ≥100 |
| CSM 450 | 450G / M2 | <0.15 | 2-5 | ≥120 |
| CSM 600 | 600G / M2 | <0.15 | 2-5 | ≥150 |
