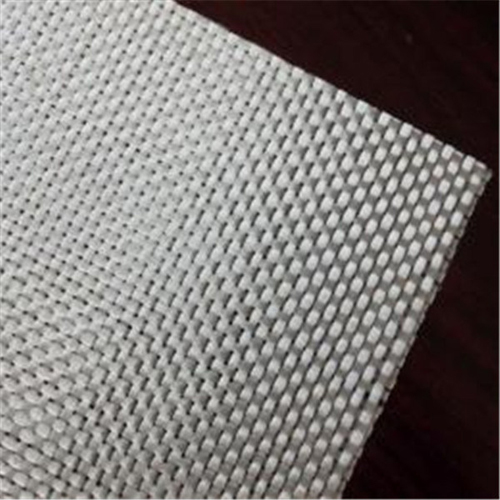

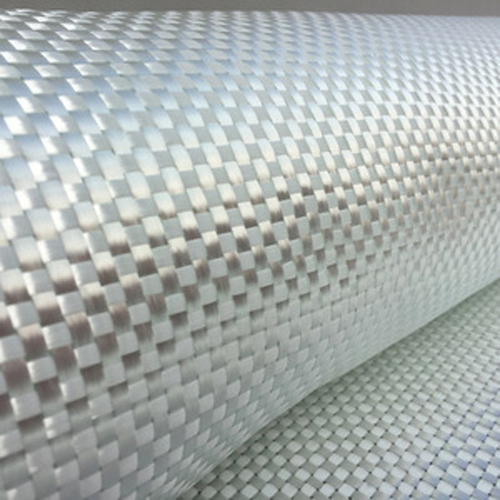

Woven Roving is a fabric made by interweaving roving and its mainly used for hand lay-up of large, high strength FRP products such as Boats ,Rolling Stock , Tanks and Architectural structures.
Woven Fabric - 200 GSM to 900 GSM
Woven Fabric - EWR 200 / 300 / 400 / 600 / 800 / 900 / 1000 - 40 kgs / roll.
Woven Fabric - CWR 200 / 300 / 400 / 600 / 800 - 40 kgs / roll.
specification |
Tex |
Fiber diameter (um) |
Count of cloth (root/cm) |
Unit area mass(g/m2) |
Breaking strength (N)> |
Texture |
||||
warp Yarn |
weft yarn |
warp Yarn |
weft yarn |
warp Yarn |
weft yarn |
Warp |
weft |
|||
EWR200 |
180 |
180 |
11 |
11 |
6.0 |
5.0 |
200±15 |
1300 |
1100 |
Plain weave |
EWR300 |
300 |
380 |
13 |
13 |
5.0 |
4.0 |
300±15 |
1800 |
1700 |
|
EWR400 |
576 |
576 |
13 |
13 |
3.6 |
3.2 |
400±20 |
2500 |
2200 |
|
EWR500 |
900 |
900 |
17 |
17 |
2.9 |
2.7 |
500±25 |
3000 |
2750 |
|
EWR600 |
1200 |
1200 |
17 |
17 |
2.6 |
2.5 |
600±30 |
4000 |
3850 |
|
EWR800 |
2400 |
2400 |
24 |
24 |
1.8 |
1.8 |
800±40 |
4600 |
4400 |
|
CWR200 |
180 |
180 |
11 |
11 |
6.0 |
5.0 |
200±15 |
1150 |
1000 |
|
CWR400 |
480 |
500 |
13 |
13 |
4.0 |
3.8 |
385±30 |
2000 |
2200 |
|
CWR600 |
1300 |
960 |
13 |
13 |
2.6 |
2.6 |
600±45 |
3500 |
3000 |
|
CWR800 |
2200 |
1760 |
13 |
13 |
2.0 |
2.0 |
810±40 |
4000 |
3600 |
|
